The Yosemite
Live configurable 3D model

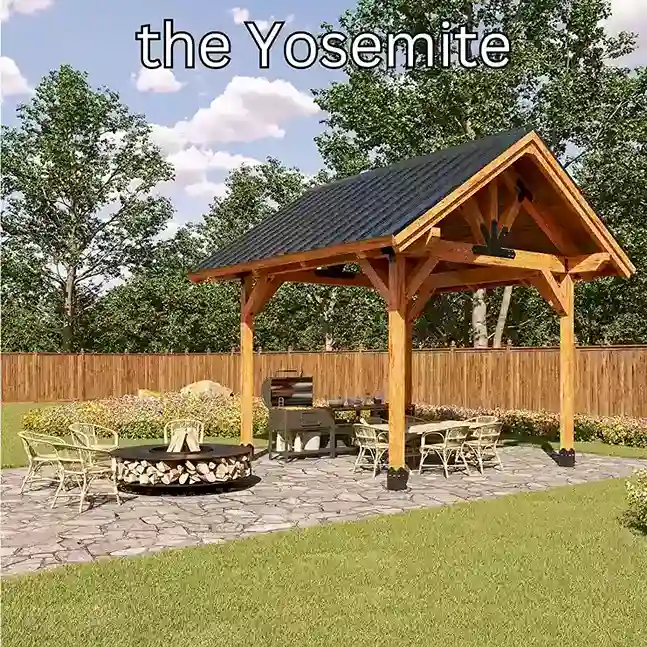

All modelsModel details ↗Cedar pavilion configurable from 10′ wide x 10′ long to as large as 20′ wide x 20′ long with roof pitch choices from 3:12 to 12:12. Designed with (4) posts and an open large timber roof system with (2) timber trusses.
Connecting your live model…
Yosemite, your way.
Cedar pavilion configurable from 10′ wide x 10′ long to as large as 20′ wide x 20′ long with roof pitch choices from 3:12 to 12:12. Designed with (4) posts and an open large timber roof system with (2) timber trusses.
- Type
- Cedar pavilion
- Configurable from
- 10′ × 10′ – 20′ × 20′
- Posts
- 4
- Top
- Open large timber roof on two timber trusses
- Roof pitch
- 3:12 to 12:12
- Material
- Red cedar, milled in Chico. Structural grading available. How grading works
What comes in the package?
All rough sawn cedar. Pre-stained with ReadySeal, in any of seven colours.
The full parts list
Cedar
- Posts, left long
- Knee braces, precut to a 45 degree angle
- Timber style headers, precut, square or chamfered ends
- Timber rafters, left long
- Timber truss parts, left long
- Roof decking, 2x6 tongue and groove Douglas fir
- Roof fascia
Hardware
- Bases
- T plates for the main header, post to header
- T plates for the truss, on a 6:12, 8:12 or 12:12 roof pitch
- Gable plates for the trusses
- Beam hangers for the truss bottom chord
- Hex nuts for all hardware
Simpson outdoor hardware, mission or avante style.
Fasteners
- Simpson Titan bolts, base to concrete
- A variety of fasteners in various lengths
Need a custom design?
If none of the ten is the structure you want, tell us what is: a span, a roof line, a pair of posts you have already set, a photograph of something you saw. Sierra designs it and prices it at no charge, the same way the ten below were designed.
What that covers is the design and the quote. Stamped engineering, permits and putting the structure up are quoted separately or arranged by you — they vary by county and by site, and nobody can promise them from a web page.
Your price is visible before we ask for your email.
Read every product detail →Structure estimate · USD · Delivery and tax extra
- Pre-Stained (Ready Seal)
- Red Cedar
- Partial Pre-Cut
